Body Temperature Screening Security Gate, Face Recognition Thermometer

Overview

Basic Info.

Model NO.	MC-B200AI
Power	≤15W
Working Environment	0 ~ 50 ºC 20-80% Rh
Temperature Resolution	0.1 ºC
Measuring Temperature	28ºC~45ºC
Transport Package	Paper Box
Specification	different
Trademark	MeCan
Origin	China Mainland
Production Capacity	5000piece/Year

Product Description

Product DescriptionMC-B200AI

External power	220V 50/60Hz
Power consumption	≤35W
Working frequency	Adjust according to the installation environment
Working environment	-20ºC- +60ºC
Dimensions	2220(high) × 820(width) × 500(deep) mm (±10%)
Channel size	2000(high) × 700(width) × 500(deep) mm (±10%)
Total Weight	≤70kg
Full weight	≤80kg

1. Technical performance:
   1. Measure temperature:28ºC~45ºC
   2. Temperature resolution:0.1ºC
   3. Accuracy:≤0.4ºC(33ºC~37ºC)
   4. Response time:≤3s
   5. Alarm temperature:Custom setting, such as 37.5 ºC
   6. Body temperature alarm:Temperature display, voice broadcast
   7. Detection distance:≤0.3m
   8. Working environment:0~50ºC;20-80%RH
   9. Body temperature display:Use core algorithm to display body temperature, such as 36.5 ºC
   10. Metal detection area:According to the basic structure of the human body, the metal detection gate is divided into 6 detection areas, and the multiple areas are detected simultaneously.
   11. Detection sensitivity:Each detection area can be adjusted with 256 levels of sensitivity.
   12. Detection and alarm working mode:single area single report, multiple area single report, multiple area multiple report, three working modes can be set by the program.
   13. Sound and light alarm:siren, doorpost location indicator light on both sides, can synchronize sound and light alarm prompt.
   14. Working frequency:16 working frequencies can be set by program, with stronger anti-interference ability.
   15. Counting function:It can count the number of people passing through and the number of alarms, and the number of people is accurate.
   16. Double protection:double protection by mechanical lock and password. Only operators who pass password verification can set parameters on the panel of the host.
   17. Interface:Reserved interface, can synchronize touch peripherals, such as: camera, alarm, access control, channel gate and other peripherals.
   18. Appearance:novel style, avant-garde design, showing majestic luxury.
   19. Material:made of special synthetic material, the surface is wear-resistant, corrosion-resistant, moisture-resistant, fire-resistant
   20. Safety:harmless to the human body (harmless to cardiac pacemakers, pregnant women, etc.), harmless to items (harmless to magnetic floppy disks, magnetic tapes, video tapes, etc.), adopting international and domestic safety standards that comply with the current applicable environment

MC-B200AII

External power	220V 50/60Hz
Power consumption	≤35W
Working frequency	Adjust according to the installation environment
Dimensions	2220(high) × 820(width) × 500(deep) mm (±10%)
Channel size	2000(high) × 700(width) × 500(deep) mm (±10%)
Total Weight	≤70kg
Full weight	≤80kg

1. Technical performance:
   1. Measure temperature:28ºC~45ºC
   2. Temperature resolution:0.1ºC
   3. Accuracy:≤0.4ºC(33ºC~37ºC)
   4. Response time:≤3s
   5. Alarm temperature:Custom setting, such as 37.5 ºC
   6. Body temperature alarm:Temperature display, voice broadcast
   7. Detection distance:≤0.3m
   8. Working environment:0~50ºC;20-80%RH
   9. Body temperature display:Use core algorithm to display body temperature, such as 36.5 ºC
   10. Counting function:statistics on total number of people and number of people with abnormal temperature
   11. Interface:reserved interface, can synchronize touch peripherals, such as: cameras, alarms, access control, channel gates and other peripherals
   12. Network function interface (optional):Reserve R485 network interface
   13. Appearance:novel style, avant-garde design, showing majestic luxury
   14. Material:made of special synthetic material, the surface is wear-resistant, corrosion-resistant, moisture-resistant, fire-resistant

MC-AS301

Measuring temperature range	Body temperature mode:32ºC~ 42.9 ºC Surface temperature mode: 0ºC~100 ºC
Measurement accuracy	according to ASTM standard
standard	Belgian precision sensor
Temperature detection	5-12cm,
Temperature error	+ -0.3 degrees
temperature detection	within 0.5 seconds

How to use how to detect the body temperature A. when detecting the body temperature, please confirm whether it works in human body temperature mode in AA=0(usually use this mode to detect body temperature) B. Pedestrians approach the walk-through temperature detector door and choose the sensor that best suits their height. Align the forehead with the sensor at a distance of 1-10 cm,and make sure that there are no hairor sweat effect.C. If you stay for more than 0.5 seconds, you will hear a beep sound. At this time, the panel will light up in green, and the current temperature will be displayed at the same time. how to detect the surface temperature A. when detecting the surface temperature, please confirm whether it works in surface temperature mode in AA=1 (usually use this mode to detect the surface temperature) B. when the object approaches the walk-through temperature detector door at a distance of 1-10 cm, staying for more than 0.5 seconds, the panel will light up and display the surface temperature. MC-AS601 AI Thermal Imaging Security Check Instrument

Vertical Dimensions	2230×920x440mm
Vertical channel size	2000X715mm
Detection distance:	5 -15cm
Ambient working tempe rature	-20 - 65 ºC
Working frequency ran ge	1-50 frequency spectrum
Accuracy range of metal objects detected in geological position	Maximum sensitivity ≥30g etal
Operating voltage	AC90V~240V 50/60Hz
Power of whole equipment	12w

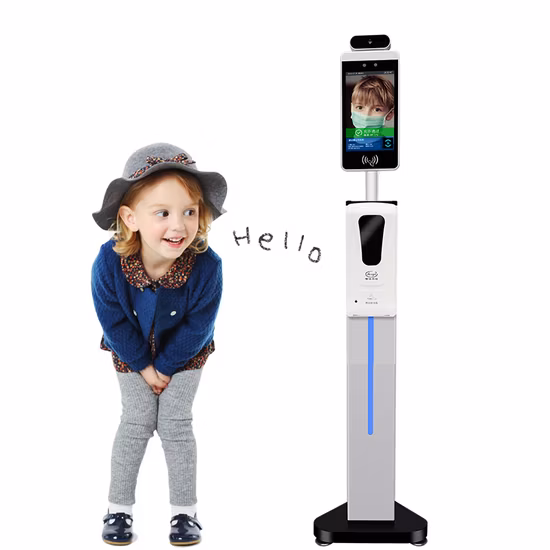

MC-AS701 Face recognition thermometer1. Working voltage standard DC-12V (wide voltage 10-16V)2.Ambient working temperature: -20ºC +65ºC3.Support contactless intelligent temperature monitoring, synchronize video overlaytemperature data, and display real-time data on screen;4. Detection distance: 0.3m --1m Temperature error range: +-0.3 ºC)5. Support AI face matching6. Support mask recognition function. Using powerful AI algorithm to accurately identify whether one person is wearing face mask or not, and provide simultaneous voice report. The recognition accuracy can reach 98%.7.Support face database: 10,000 persons Support8. RJ45+WIFI hot spot distribution network9.Single package size: 45cm*14cm*18cm large cartons (9 packs) : 45cm*45cm*55cm Weight of individual package: 1.5KG Machine weight:1.2KGCompany Profile
